Ellisys USB Explorer 260
Multifunction USB 2.0 Protocol Test System

Screenshots Datasheet Features chart Downloads Frequently Asked Questions How to buy?

Overview

The Ellisys USB Explorer 260 is a sophisticated protocol test system for USB traffic monitoring, driver and software stack debugging, protocol compliance verification and performance analysis. The EX260 can reduce your R&D development time by finding issues early and debugging more efficiently, and can improve quality and reliability by verifying compliance to the specifications.

The multifunction USB Explorer 260 can:

• analyze USB 1.1 and USB 2.0 links at any speed, including OTG and the new InterChip-USB at all speeds and all voltages;
• emulate USB hosts and devices;
• inject pre-defined error patterns for stress and error recovery testing; and,
• automatically verify compliance to the USB and class specifications.

Each flexible Ellisys USB Explorer 260 hardware unit is capable of acting either as a protocol analyzer or a packet generator depending on configuration.

Configurations

The Ellisys USB Explorer 260 Analyzer includes Ellisys' extensive analysis features with real-time monitoring, hard-disk data streaming, in-depth class decoding, comprehensive traffic statistics, and powerful triggering and filtering.

The USB Explorer 260 Analyzer is based on Ellisys' renown USB analysis software that is well-proven for validating device enumeration, solving communication issues, detecting interoperability problems and optimizing performance.

The Ellisys USB Explorer 260 Generator complements protocol analysis by emulating USB devices and hosts, and by testing corner cases and recovery mechanisms. Reproducible traffic, timing and error scenarios can be created with a powerful scripting environment. Captured traffic can be replayed to test a particular situation. The Generator supports the industry's first Inline Error Injection feature to insert programmed errors between a host and device to determine the impact of transmission errors under rare conditions.

The Generator also includes the Ellisys USB Device Examiner Automated Pre-Compliance Testing software. This software controls a generator and an optional analyzer to automatically verify the compliance of devices against the USB specification and classes specifications such as HID and Mass Storage. See brochure »

Click the image to expand it

The Ellisys USB Explorer 260 Duo is a flexible bundle of two full-featured units that can be used as one analyzer and one generator, two analyzers or two generators depending on your testing requirements. More convenient than having both functions on the same unit, this allows you to better share your test equipment among your R&D team.

» Ellisys USB Explorer 260 features chart

Ellisys USB Explorer 260 Analyzer

Analyzer Applications

• USB host and device traffic monitoring
• Drivers and software stacks debugging
• Passive protocol compliance verification
• Performance analysis

Analyzer Features

• Analyses links non-intrusively
• Transfers analyzed data in real-time for virtually unlimited recording time
• Highlights protocol errors and interoperability issues
• Efficiently decodes all requests and data structures

Typical Analysis Setup

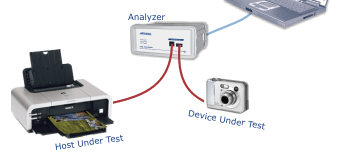

The USB Explorer 260 Analyzer is connected in pass-through mode and records any traffic exchanged between a USB host and device. The host can be a PC, an embedded host or a USB Explorer 260 Generator.

Ellisys USB Explorer 260 Generator

Generator Applications

• USB host and device traffic emulation
• Error recovery mechanisms testing
• Active protocol compliance verification
• Stress testing

Generator Features

• Generates arbitrary packets with precise timing control
• Injects errors to test error recovery mechanisms
• Uses exported scripts from analyzer to play back all kind of scenarios
• Powerful scripting environment with integrated editor and debugger

Inline Error Injection Setup

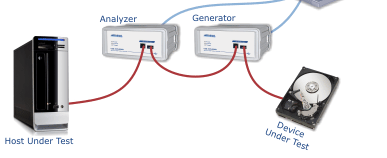

A USB Explorer 260 Generator and USB Explorer 260 Analyzer are connected in pass-through mode between a USB host and device. The generator injects programmed errors on the link while the analyzer non-intrusively records any traffic exchanged between the host and the device.
